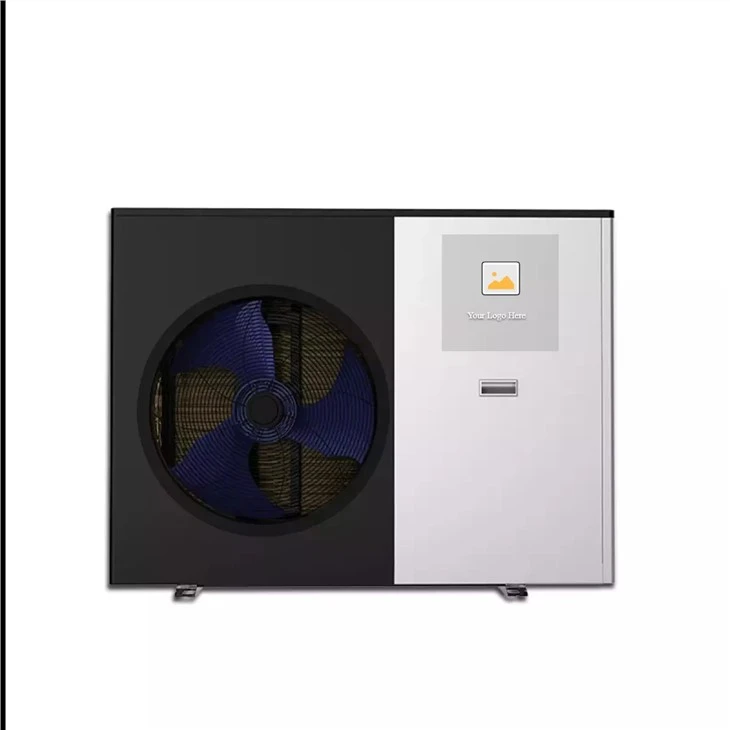

R32 Monobloc Lub Tsev Kub Kub Twj

Series: Easylife Plus Series
Cov tub yees: R32.
Qib Zog: A+++.
Muaj nuj nqi: Cua sov, txias, thiab DHW.
Qhov siab tshaj qhov hluav taws xob dej kub: 65 degree.

Xa kev nug

Khoom Taw Qhia Khoom Parameters

Easylife Plus Series cov twj tso cua sov yog lub zog thiab dav siv lub twj tso kua mis cua-rau-dej, uas tuaj yeem ua tau nrog lub tshuab boiler thiab lub hnub ci. Ua tsaug rau PowerWorld's advanced EVI thev naus laus zis thiab tag nrho DC inverter thev naus laus zis, chav tsev muaj kev ua haujlwm siab hloov hluav taws xob, COP yog siab li 5.36, thiab qib kev siv hluav taws xob tuaj yeem ncav cuag A +++ ntawm 35 degree . Tshwj xeeb tshaj yog cov ntse daim phiaj muaj nuj nqi, cascades muaj nuj nqi, thiab BMS muaj nuj nqi ua rau lub zog txuag zog thiab ntse.

Khoom feature:

1. Tau tshaj boiler systems thiab solar systems;

2. Cua sov muaj peev xwm 8KW ~ 22KW;

3. Muab cov cua kub cua txias thiab cov dej kub hauv tsev thoob plaws hauv lub xyoo;

4.Energy theem A+++, COP mus txog 5.36;

5. Txhawb RS485, Modbus raws tu qauv, wifi dawb, thiab IoT tswj;

6. Tau cascade 8 lub tshuab cua sov.

Triple Supply Air Source Heat Pump

Cim npe nrov: r32 monobloc tsev kub twj tso kua mis

Specification:

EVI DC Inverter Thaum tshav kub kub twj tso kua mis rau cua txias thiab DHW (R32)
Qauv	PW030-DKZLRS-D/S	PW040-DKZLRS-D/S	PW040-DKZLRS-D	PW050-DKZLRS-D	PW060-DKZLRS-D
Cua sov Condition - Ambient Temp. (DB/WB): 7/6 degree, Water Temp. (hauv / Tawm): 30/35 degree
Cua sov muaj peev xwm (kW)	3.2~8.0	4.8~12.0	4.8~12.0	7.3~18.0	8.8~22.0
Cua sov fais fab input range (kW)	0.61~1.88	0.93~2.88	0.93~2.88	1.36~4.14	1.67~5.15
COP Range	4.26~5.23	4.17~5.18	4.17~5.18	4.35~5.36	4.27~5.28
DHW Condition-Ambient Temp. (DB/WB): 7/6 degree, Water Temp. (hauv / Tawm): 15/55 degree
Cua sov muaj peev xwm (kW)	2.9~7.2	4.3~10.8	4.3~10.8	6.0~15.0	7.4~18.5
Cua sov fais fab input range (kW)	0.64~1.97	0.97~3.03	0.97~3.03	1.29~4.00	1.63~5.05
COP Range	3.65~4.54	3.56~4.45	3.56~4.45	3.75~4.64	3.66~4.55
Txias Condition - Ambient Temp. (DB/WB): 35/24 degree, Dej Temp.(In/Out): 12/7 degree
Lub peev xwm txias (kW)	2.5~6.2	3.3~8.2	3.3~8.2	5.1~12.6	6.0~15.0
Cua txias zog input range (kW)	0.79~2.27	1.06~3.11	1.06~3.11	1.58~4.53	1.88~5.49
EER Range	2.73~3.15	2.64~3.10	2.64~3.10	2.78~3.23	2.73~3.19
ERP Qib (35 degree)	A+++	A+++	A+++	A+++	A+++
ERP Qib (55 degree)	A++	A++	A++	A++	A++
Fais fab mov	230V / 1Ph / 50Hz / 60Hz		380V / 3Ph / 50-60Hz
Txoj kab uas hla (mm)	DN 25	DN 25	DN 25	DN 25	DN 25
Dej ntws (m 3 / h)	1.2	1.5	1.5	2.5	2.8
Dej siab poob siab (max) kPa	30	35	35	40	45
Hom twj tso kua mis	Adjustable DC inverter
Max dej taub hau (m)	9	9	9	12	12
Hluav taws xob cov cua sov (kW)	3	3	3	3	3
Expansion nkoj (L)	2	5	5	5	5
Kev nyab xeeb valve (MPa)	0.3	0.3	0.3	0.3	0.3
Suab nrov dB (A)	Tsawg dua los yog sib npaug li 45	Tsawg dua lossis sib npaug li 48	Tsawg dua lossis sib npaug li 48	Tsawg dua lossis sib npaug li 53	Tsawg dua lossis sib npaug li 55
Net Nyhav (kg)	105	115	115	160	165
Net Dimension (L / W / H) mm	1150×460×820	1150×460×960	1150×460×960	1260×480×1060	1260×480×1060
Ua haujlwm Ambient Temp. (degree)	-30 ~ 43 degree
Kev khiav dej num kub (degree)	20 ~ 55 degree (DHW)
Kev khiav dej num kub (degree)	20 ~ 50 degree (Cua kub)
Kev khiav dej num kub (degree)	7 ~ 35 degree (Cov)
