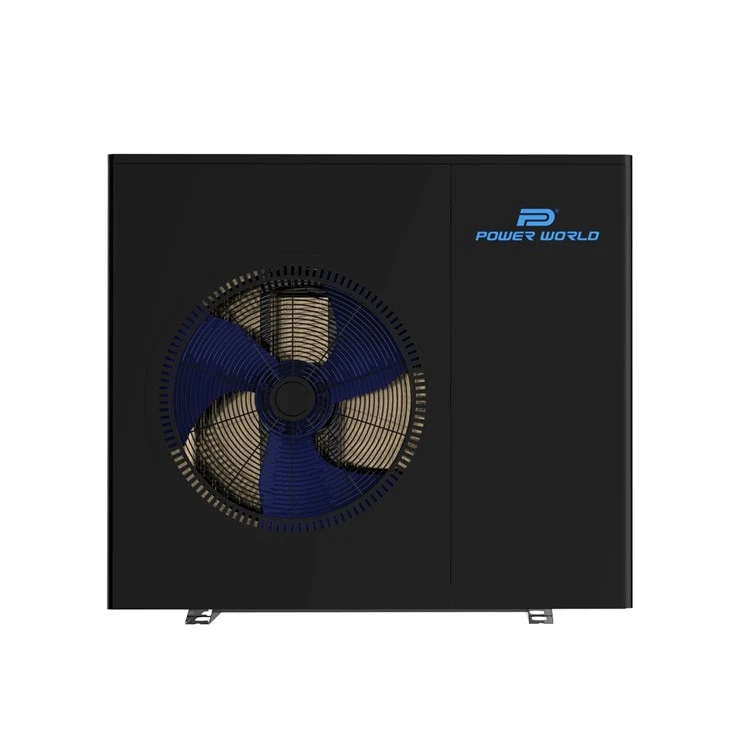

Kev lag luam cua sov cua qhov chaw sov lub twj tso kua mis

Series: Easylife Series
Lub Zog: 8.4kw -35kw.
Muaj nuj nqi: Cua sov, txias, thiab dej kub hauv tsev.
Zog Qib: Ib qho ntxiv ntxiv ntxiv ntxiv.
Cov tub yees: R32.
Suab nrov (dB(A)): Tsawg dua lossis sib npaug rau 53.

Xa kev nug

Khoom Taw Qhia Khoom Parameters

Ntawm ntau hom tub yees, R32 yog ib qho kev txhawj xeeb tshaj plaws hauv eco-phooj ywg tub yees tam sim no. Nyob rau hauv lub ntiaj teb no kev ua lag luam, vim lub high tshav kub hloov efficiency ntawm R32, uas yuav txo tau hwj chim noj li ntawm 10 feem pua, lub ntiaj teb no warming peev (GWP) yog tsawg, thiab cov kev cuam tshuam rau ib puag ncig yog me me, lub tshav kub twj tso kua mis cua txias khoom. tau hloov pauv sai ntawm R407C, R22, R410A hloov mus rau R32, nws yog ib qho tseem ceeb ntawm kev hloov pauv hluav taws xob hauv kev lag luam yav tom ntej.

Khoom Feature

Kwv yees li ntawm 10 feem pua txo kev siv hluav taws xob

Piv nrog R410A, R32 siv 78 feem pua cov tub yees tsawg dua thiab tuaj yeem txo cov pa roj carbon emissions los ntawm 68 feem pua.

Siab zog Efficiency Class A ntxiv rau ntxiv

Qhov siab dua chav kawm ntawm kev siv hluav taws xob, qhov kev siv hluav taws xob qis dua. Ib qho ntawm qhov tseem ceeb ntawm Easylife Series DC inverter cua sov twj tso kua mis yog tias nws cov ERP (TUV) lub zog txuag hluav taws xob nce mus txog A ntxiv rau ntxiv rau ntawm 35C thiab A ntxiv rau ntawm 55C, thiab nws SCOP siab li 4.86 , uas txhais tau hais tias nws tuaj yeem tso tawm qhov siab tshaj plaws cua sov lub peev xwm rau lub tsev nrog qhov tsawg kawg nkaus lub zog noj.

LCD muaj yeeb yuj Touchcream Multi-language Controller

Easylife series kub twj tso kua mis txais yuav ib tug 4-inch super loj LCD touchscreen maub los nrog ib daim ntawv qhia meej, rhiab kov teb, ua haujlwm yooj yim, thiab ua tiav cov haujlwm.

a. Ntau hom kev txuag hluav taws xob

Nws muaj plaub hom kev khiav hauj lwm sib txawv: Hwj chim hom, Silent Mode, Smart Mode, thiab Vacation Mode. Cov neeg siv tuaj yeem xaiv ntau hom kev ua haujlwm raws li lawv qhov xav tau tiag tiag. Qhov kev ua haujlwm no tuaj yeem pab cov neeg siv txuag hluav taws xob tsis tsim nyog kom ntau li ntau tau thaum ua tau raws li tus neeg xav tau ntawm cov neeg siv

b. 13 Dyog hais tiasIntajLlusDua si

Raws li cov khoom lag luam thoob ntiaj teb, kev xaiv ntau hom lus ua haujlwm yog qhov tseem ceeb, uas tso cai rau cov neeg siv tau yooj yim nyeem thiab khiav lag luam Easylife Series cov twj cua sov. Muaj 13 hom lus xaiv los ntawm, xws li Lus Askiv, Polish, Mev, Czech, German, Danish, Swedish, thiab lwm yam. Qhov ntau hom lus no yog qhov yooj yim heev rau cov neeg siv los ntawm ntau lub teb chaws.

c. Txhawb Rs485 thiab Modbus Kev Sib Txuas Lus raws tu qauv

d. Txhawb Kev Tswj Txuas Txuas nrog Thermostat

Cov kev sib txuas sib txuas hauv lub twj tso kua mis cua sov txhawb kev sib txuas nrog lub ntsuas cua sab hauv tsev kom ua tiav kev tswj kev sib txuas, thiab kev tswj qhov kub thiab txias tuaj yeem ua tau raws li ±0.1 degree, ua rau qhov kub thiab txias hauv tsev ntau qhov chaw thiab xis nyob.

Smart Home Solutions

Lub built-in WIFI module ntawm R290 lub tshuab cua sov no tuaj yeem txuas ncaj qha rau "Smartlife" APP los ntawm lub router. Cov neeg siv tsis tas yuav yuav lub thawv WIFI module, lawv tuaj yeem tswj cov twj tso kua mis cua sov thiab saib cov kev ua haujlwm ntawm lub tsev txhua lub sijhawm thiab nyob qhov twg los ntawm lub smartphone.

Inverter Heat Pump

IoT Kev Tswj Xyuas Cov Neeg Siv Khoom Platform

Power World's IoT huab tswj platform tuaj yeem txuas nrog Wi-Fi lossis DUT kom paub txog kev saib xyuas tej thaj chaw deb ntawm cov ntaub ntawv. Lub platform no tuaj yeem sau tag nrho cov haujlwm tsis ua haujlwm ntawm cov chav nyob los ntawm Power World. Yog tias chav tsev muaj qhov yuam kev, daim ntawv qhia txog kev ua yuam kev yuav raug synchronized rau cov chaw muab kev pabcuam hauv zos lossis Power World lub console, thiab tom qab ntawd peb yuav muab cov kev daws teeb meem zoo tshaj plaws rau cov neeg siv, uas txuag tau nyiaj ntau tom qab muag kev sib txuas lus thiab cov nqi ntawm cov neeg siv, cov neeg muag khoom, thiab manufacturers.

Chaw taws teeb tswj

Kev soj ntsuam tej thaj chaw deb

Kev Tswj Chaw Taws Teeb

Cim npe nrov: coj mus muag cua sov cua qhov chaw tshav kub twj tso kua mis

Specification:

Khoom qauv		PW030-DKZLRS-A	PW040-DKZLRS-A	PW050-DKZLRS-A	PW060-DKZLRS-A	PW080-DKZLRS-A	PW010-DKZLRS-A
Cua sov	Cua sov muaj peev xwm (kW)	1.57~8.40	4.40~13.00	5.9~18.2	7.5~23.0	10.2~28.0	12.8~35.0
	Cua sov input range (kW)	0.32~1.87	0.90~3.02	1.20~4.11	1.53~5.23	2.07~6.36	2.61~7.99
	Tam sim no ntau yam (A)	1.42~8.30	1.39~4.68/ 4.12~13.8	1.86~6.37/ 5.49~18.8	2.37~8.11	3.70~11.4	4.67~14.3
	COP Range	4.49~4.91	4.30~4.90	4.43~4.92	4.40~4.90	4.40~4.92	4.38~4.90
Txias	Lub peev xwm txias (kW)	0.99~6.22	2.80~8.20	3.81~11.53	4.73~14.6	6.54~19.8	8.13~24.6
	Cua txias input zog (kW)	0.29~2.18	0.85~3.31	1.11~4.05	1.39~5.14	1.92~6.97	2.42~8.75
	Tam sim no ntau yam (A)	1.28~9.67	1.32~5.13/ 3.89~15.1	1.72~6.28/ 5.08~18.5	2.16~7.97	3.43~12.5	4.33~15.6
	EER Range	2.85~3.41	2.48~3.29	2.85~3.43	2.84~3.40	2.84~3.40	2.81~3.36
DHW	Cua sov muaj peev xwm (kW)	1.28~6.81	3.52~10.50	4.80~14.72	6.1~18.5	12.3~20.4	13.6~22.6
	Cua sov input range (kW)	0.31~2.13	0.88~3.39	1.17~4.60	1.53~5.97	2.8~5.37	3.09~5.95
	Tam sim no ntau yam (A)	1.38~9.45	1.36~5.26/ 4.03~15.5	1.82~7.15/ 5.35~21.1	2.37~9.26	5.0~9.6	5.52~10.6
	COP Range	3.2~4.1	3.1~4.0	3.2~4.1	3.1~4.0	3.8~4.4	3.8~4.4
Cov tub yees		R32
Fais fab mov		230V / 1Ph / 50-60Hz	230V / 1Ph / 50-60Hz / 380V / 3Ph / 50-60Hz	230V / 1Ph / 50-60Hz / 380V / 3Ph / 50-60Hz	380V / 3Ph / 50-60Hz
Chaw ua haujlwm	-30 ~ 43 degree
Kev khiav dej num (m³ / H)		1.4	2.2	3.1	4.0	4.8	6.0
Dej siab poob (kPa)		31	25	35	45	40	50
IP Qib (Kev tiv thaiv)		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Suab nrov (dB(A))		Tsawg dua lossis sib npaug li 53	Tsawg dua lossis sib npaug li 55	Tsawg dua lossis sib npaug li 57	Tsawg dua lossis sib npaug li 58	Tsawg dua lossis sib npaug li 62	Tsawg dua lossis sib npaug li 66
Txoj kab uas hla (mm)		DN 25	DN 25	DN 25	DN 25	DN 32	DN 32
ERP Qib (35 degree)		Ib plus plus	Ib plus plus	Ib plus plus	Ib plus plus	Ib plus plus	Ib plus plus
Kev khiav dej num kub (degree) DHW	9 ~ 55 degree
Kev khiav dej num kub (degree) cua sov	9 ~ 50 degree
Kev khiav dej num kub (degree) txias	7 ~ 35 degree
Lus Cim: Cov cua kub ua haujlwm: Inlet dej kub 30 degree, Qhov hluav taws xob dej kub 35 degree, qhuav qhov muag kub 7 degree, ntub qhov muag kub 6 degree. Kev ua haujlwm txias txias: Qhov dej kub hauv dej 12 degree, Qhov hluav taws xob dej kub 7 degree, qhuav qhov muag kub 35 degree, ntub qhov muag kub 24 degree. DHW kev ua haujlwm: Inlet dej kub 15 degree, Qhov hluav taws xob dej kub 55 degree, qhuav qhov muag kub 7 degree, ntub qhov muag kub 6 degree.
