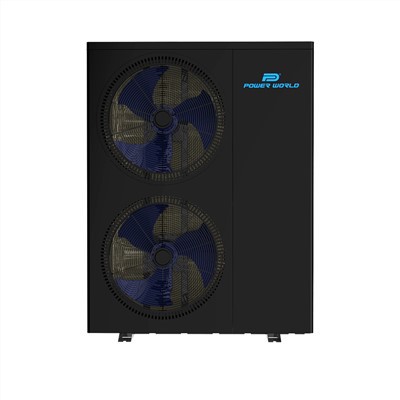

Split EVI DC Inverter Thaum tshav kub kub twj tso kua mis

Series: ECO Tsev Series
Cov tub yees: R410A / R32

Xa kev nug

Khoom Taw Qhia Khoom Parameters

PowerWorld phua inverter cua zog cua sov twj tso kua mis yog tsim tshwj xeeb rau cua sov, txias, thiab huv si dej kub hauv tsev nyob rau hauv cov teb chaws Europe. PowerWorld's EVI thev naus laus zis ua kom cov cua sov muaj peev xwm ntawm cov cuab yeej ruaj khov ntawm -25 degree . Peb muab kev pabcuam OEM thiab ODM rau cov twj tso cua sov thiab tuaj yeem xa cov qauv rau kev kuaj.

Khoom nta:

1. Triple mov muaj nuj nqi: ib txhij cua kub thiab domestic dej kub, simultaneous cua txias thiab domestic dej kub, thiab cais domestic dej kub. Tsib hom kev khiav hauj lwm xws li cais cua sov thiab cais txias.

2. Nruab nrog EVI compressor nrog ruaj khov thiab kub kub tsim.

3. Sib cais tsim ntawm chav tsev sab hauv thiab sab nraum zoov. Zoo tiv thaiv frosting thaum lub hwj chim tsis ua hauj lwm.

4. Ntau yam terminals tuaj yeem txuas nrog: cua sov hauv pem teb, kiv cua coil, lub tshuab rhaub dej, thiab lub tshuab hluav taws xob niaj hnub.

5. Qhov kev paub tab tsis siv neeg defrosting tuaj yeem ua rau chav tsev sab nraum zoov ua haujlwm ruaj khov ntawm qhov ntsuas kub ntawm -25 degree .

6. R32 thiab R410a refrigerants, ntsuab zog, ultra-low CO2 emissions.

7. Cov ntawv pov thawj: CE, RoHS, ua raws li EN14825, EN14511 cov qauv xeem, Keymark, ERP, thiab lwm yam ntawv pov thawj.

product-1-1

Cim npe nrov: split evi dc inverter tshav kub twj tso kua mis


Khoom qauv		PW030-DKZLRS-C	PW050-DKZLRS-C
Cua sov	Cua sov muaj peev xwm (kW)	7.4~12.3	11.7~20.5
	Cua sov input range (kW)	1.5~3.3	2.4~5.6
	Tam sim no ntau yam (A)	7.5~16.5	4.8~10.6
	COP Range	3.69~4.9	3.67~4.88
Txias	Lub peev xwm txias (kW)	4.9~8.9	8.2~14.8
	Cua txias input zog (kW)	1.5~3.7	2.5~6.0
	Tam sim no ntau yam (A)	7.3~18.1	5.0~12.0
	EER Range	2.41~3.27	2.47~3.28
DHW	Cua sov muaj peev xwm (kW)	5.9~12.8	9.4~19.8
	Cua sov input range (kW)	1.5~4.2	2.4~6.8
	Tam sim no ntau yam (A)	7.3~19.7	4.8~13.6
	COP Range	3.05~3.93	2.91~3.92
Cov tub yees		R410A/R32
Fais fab mov		230V / 1Ph / 50-60Hz	380V / 3Ph / 50-60Hz
Chaw ua haujlwm		-30-43 degree
Kev khiav dej num (m³ / H)		2.73	4.04
Dej siab poob siab (kPa)		25	30
IP Qib (Kev tiv thaiv)		IPX4	IPX4
Anti-electric shock Rate		I	I
Suab nrov (dB(A))		Tsawg dua lossis sib npaug li 53	Tsawg dua lossis sib npaug li 58
Net nyhav / tag nrho qhov hnyav (kg)		150/160	180/190
Kev sib txuas dej (inch)		1
Cua sov sab dej txuas (inch)		1
Kub Dej Sab Dej Txuas Txuas (inch)		1
Lub cev loj (W * D * H) (mm)		1110×475×985/ 757×500×272/	1110×480×1330/ 757×500×272/
Ntim qhov loj (W * D * H) (thawv) (mm)		/	/
Ntim qhov loj (W * D * H) (Polywood) (mm)		/	/
Chaw thau khoom kom muaj nuj nqis (20GP / 40GP / 40HQ)		40/88/88	22/42/42
ERP Qib (35 degree)		A++	A++
ERP Qib (55 degree)		A+	A+
Lub taub hau dej (m)		6m	8m
Electric rhaub (kW)		3
Kev khiav dej num kub (degree) DHW		9 ~ 60 degree
Kev khiav dej num kub (degree) cua sov		9 ~ 50 degree
Kev khiav dej num kub (degree) txias		7 ~ 35 degree
