Component Integration Design
Lub Hydrobox ua ke nrog cov twj tso kua dej, li qub, cov khoom siv kev nyab xeeb, lub tshuab hluav taws xob thiab lwm yam khoom siv. Piv nrog cov tsoos
complex thiab cumbersome piping system layout, nws installation cheeb tsam yog me me, txog 0.4㎡; nws txuag lub sij hawm installation thiab nqi; nws tuaj yeem txo
tib neeg yam thiab ib puag ncig kev puas tsuaj, thiab kev saib xyuas yog yooj yim.
qhov zoo
Kev tu yooj yim

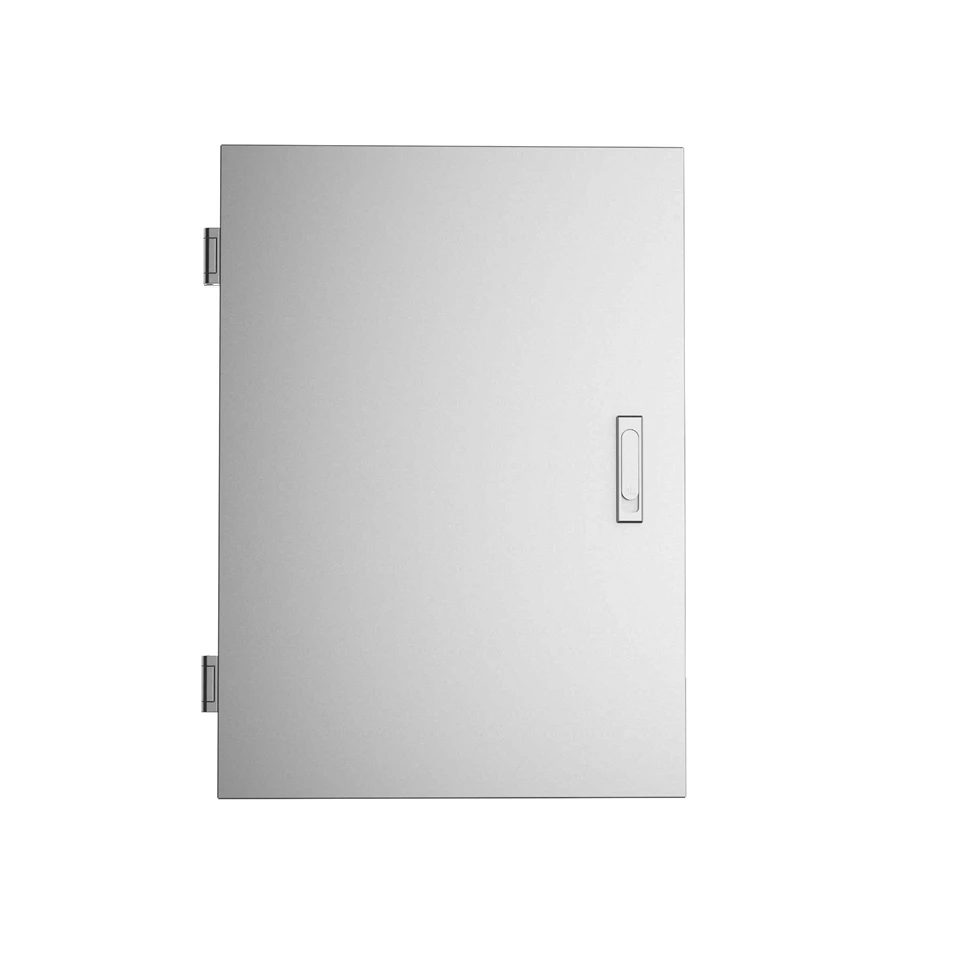

Quick Access Hinged Qhov Rooj:Lub qhov rooj hinged tsim, ua tiav nrog lub qhov rooj xauv, tso cai yooj yim rau kev saib xyuas thiab tshuaj xyuas, ua kom yooj yim cov txheej txheem kev pabcuam thiab txuag sijhawm.
Hluav taws xob rhaub
High-Kev Ua Haujlwm Pabcuam Cua sov:Features ib tug cylindrical pipeline qauv rau $360^{\\circ}$ muaj cua sov, muab robust tsis kam mus rau siab, kub, ntsev, thiab alkali rau guaranteed ntev.
Ntse Tsev Tswj
Seamless Smart Home Integration:Lub Hydrobox system tso cai rau kev sib txuas lus ncaj qha nrog lub tshuab nqus tsev twj tso kua mis, tso cai rau kev siv zog thiab tsis sib haum xeeb nrog kev tswj hwm hauv tsev ntse.
Lim
High -Flow Copper Filter:Txuas nrog tooj liab Y- lim dej thiab lub qhov dej ntws yooj yim, cov khoom siv no muab lub vijtsam loj dua li cov lim dej txheem, ua kom yooj yim txij nkawm thiab tu cov haujlwm.
Expansion Tank
Hom Tsis yog -Welded Expansion Tank:Features ib tug tshwj xeeb airbag qauv nrog ib tug flange phaj extruded yam tsis muaj cov ntsiab lus welding, zoo txo cov dej muaj kuab paug thiab slowing tank corrosion.
DC lub twj tso kua mis
SHIMGE Inverter DC Dej twj tso kua mis:Siv cov kev txawj ntse hloov pauv zaus tswj thiab lub cev muaj zog hlau nplaum ruaj khov. Ceramic bearings yog dej-lubricated rau siab hnav tsis kam thiab txo suab nrov zoo dua.
3-Txoj kev Valve
Premium 3-Txoj Kev Valve:Tau los ntawm cov npe nrov thoob ntiaj teb, cov khoom sib xyaw ua ke no lav kev ua haujlwm tsis tshua muaj suab nrov, ua haujlwm siab, thiab kev ua haujlwm ruaj khov txawm tias nyob rau hauv siab - qhov kub thiab txias.
Casing
High-Lub zog hlau casing:Cov txheej txheem kev ncaj ncees tau raug lees paub los ntawm $ 3D $ cov qauv software simulation, thiab ib qho hlau sab hauv kom ntseeg tau tias muaj zog tag nrho thiab kev ntseeg siab.
| Qauv | PW-03H/S | PW-03H | PW-05H/S | PW-05 H |
| 3-Txoj kev Valve | ACOL/DN25 | ACOL/DN25 | ACOL/DN25 | ACOL/DN25 |
| Hluav taws xob rhaub | 3 kW/220V | 3 kW/220V | 3 kW/220V | 3 kW/220V |
| Expansion Tank (L) | 8L | 8L | 8L | 8L |
| Txoj kab uas hla (mm) | DN 25 | DN 25 | DN 25 | DN 25 |
| Kev nyab xeeb valve (MPa) | 0.3 | 0.3 | 0.3 | 0.3 |
| Leakage Hloov (A) | Schneider / 40A | Schneider / 25A | Schneider / 50A | Schneider / 32A |
| Txee | Galvanized hmoov coated steel | |||
| Pob | Thawv | Thawv | Thawv | Thawv |
| Fais fab mov (V) | 230V / 1Ph / 50-60Hz | 380V / 3Ph / 50-60Hz | 230V / 1Ph / 50-60Hz | 380V / 3Ph / 50-60Hz |
| Net Nyhav (kg) | 30 | 30 | 30 | 30 |
| Qhov hnyav tag nrho (kg) | 33 | 33 | 33 | 33 |
| Net Dimension (hli) | 700*500*280 | 700*500*280 | 700*500*280 | 700*500*280 |
| Packing Dimension (hli) | 760*540*320 | 760*540*320 | 760*540*320 | 760*540*320 |
| Cov qauv siv tau | PW 030/040 (ib theem) | PW040 (Peb-theem) | PW050 (ib theem) | PW050/PW060(Peb-phase) |
Cov khoom siv yeem: Peb- txoj kev valve (qauv DN25, DN32, DN40)
